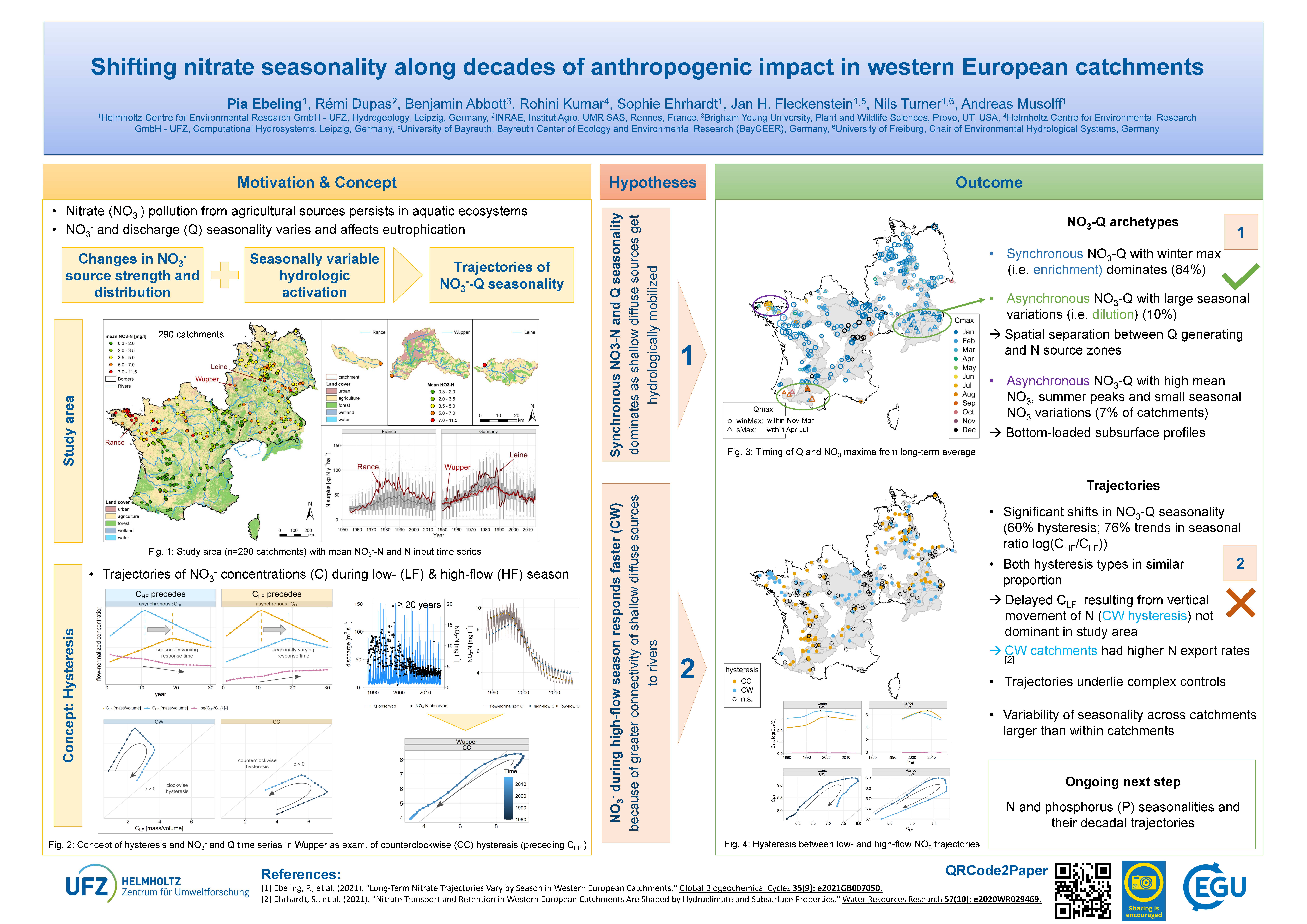

Spatio-temporal variations of water sources and mixing degrees in a floodplain

First OZCAR TERENO International Conference 2021 Guilherme Nogueira, Christian Schmidt, Daniel Partington, Philip Brunner, Jan H. Fleckenstein
Abstract: Riparian zones are known to modulate water quality in stream corridors. They can act as buffers for groundwater-borne solutes before they enter the stream at harmful, high concentrations or facilitate solute turnover and attenuation in zones where stream water (SW) and groundwater (GW) mix. This natural attenuation capacity is strongly controlled by the dynamic exchange of water and solutes between the stream and the adjoining aquifer, creating potential for mixing-dependent reactions to take place. Here, we couple a previously calibrated transient and fully integrated 3D surface–subsurface numerical flow model with a hydraulic mixing cell (HMC) method to map the source composition of water along a net losing reach (900 m) of the fourth-order Selke stream and track its spatiotemporal evolution. This allows us to define zones in the aquifer with more balanced fractions of the different water sources per aquifer volume (called mixing hot spots), which have a high potential to facilitate mixing-dependent reactions and, in turn, enhance solute turnover. We further evaluated the HMC results against hydrochemical monitoring data. Our results show that, on average, about 50 % of the water in the alluvial aquifer consists of infiltrating SW. Within about 200 m around the stream, the aquifer is almost entirely made up of infiltrated SW with practically no significant amounts of other water sources mixed in. On average, about 9 % of the model domain could be characterized as mixing hot spots, which were mainly located at the fringe of the geochemical hyporheic zone rather than below or in the immediate vicinity of the streambed. This percentage could rise to values nearly 1.5 times higher following large discharge events. Moreover, event intensity (magnitude of peak flow) was found to be more important for the increase in mixing than event duration. Our modeling results further suggest that discharge events more significantly increase mixing potential at greater distances from the stream. In contrast near and below the stream, the rapid increase in SW influx shifts the ratio between the water fractions to SW, reducing the potential for mixing and the associated reactions. With this easy-to-transfer framework, we seek to show the applicability of the HMC method as a complementary approach for the identification of mixing hot spots in stream corridors, while showing the spatiotemporal controls of the SW–GW mixing process and the implications for riparian biogeochemistry and mixing-dependent turnover processes.

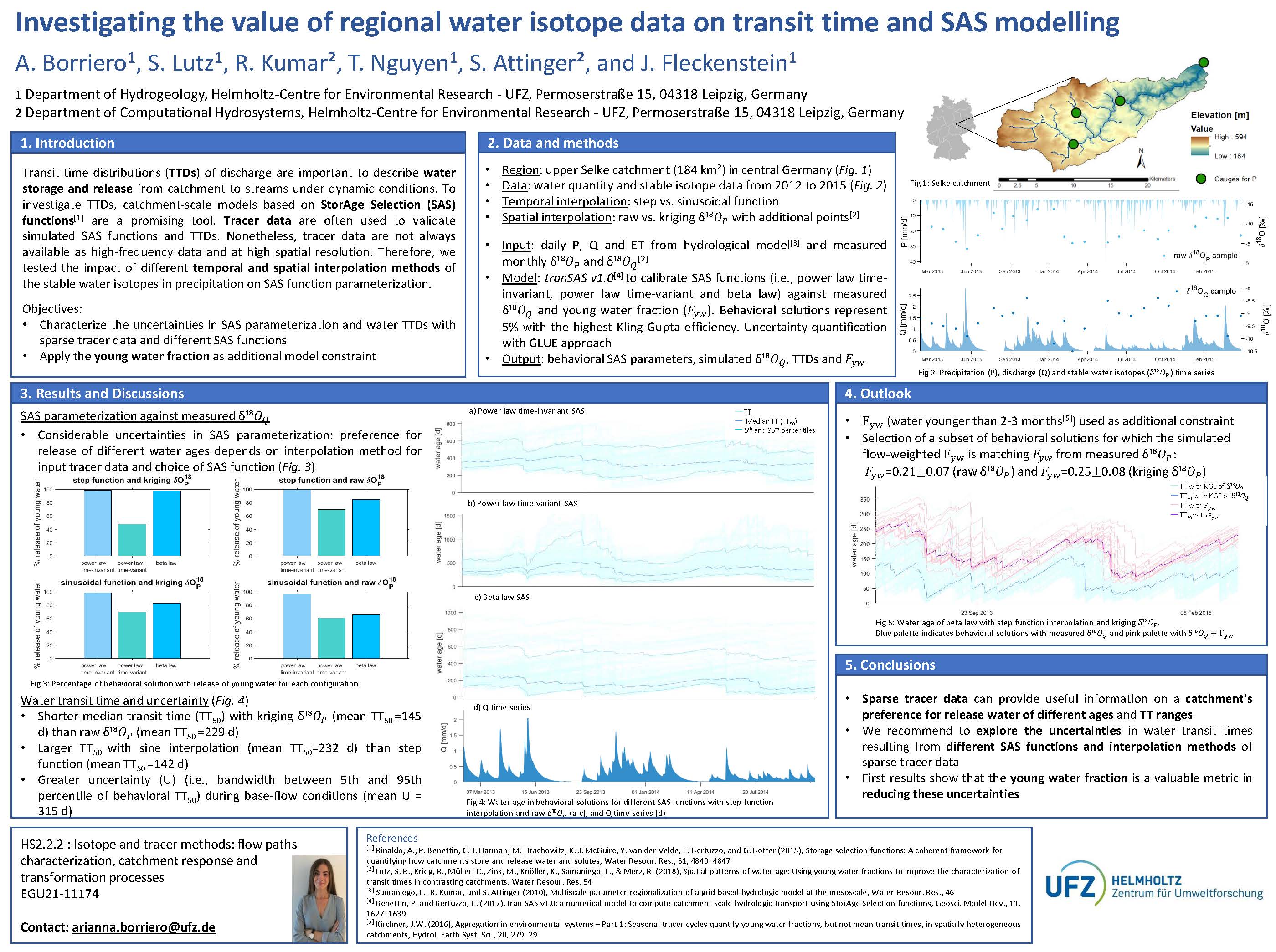

Investigating the value of regional water isotope data on transit time and SAS modelling

EGU 2021 Arianna Borriero, Stefanie Lutz, Rohini Kumar, Tam Nguyen, Sabine Attinger, Jan Fleckenstein
Abstract: High nutrient concentrations despite mitigation measures and reduced inputs are a common problem in anthropogenically impacted catchments. To investigate how water and solutes of different ages are mixed and released from catchment storage to the stream, catchment-scale models based on water transit time from StorAge Selection functions (SAS) are a promising tool. Tracking fluxes of environmental tracers, such as stable water isotopes, allows to calibrate and validate these models. However, this requires collection of water samples with an adequate temporal and spatial resolution, while sampling in catchments at the management scale is often limited by the high costs of the instruments, maintenance and chemical analysis. Therefore, temporal and spatial interpolation techniques are needed. This study demonstrates how to deal with sparse tracer data in space and time, and evaluates if these data are valuable to constrain the subsurface mixing dynamics and transit time with SAS modelling. We simulated water isotope data in diverse sub-basins of the Bode catchment (Germany) and calibrated the SAS function parameters against the measured streamflow isotope data. We tested four different combinations of spatial and temporal interpolation of the measured precipitation isotope data. In terms of temporal interpolation, monthly oxygen isotopes in precipitation (δ18OP) collected between 2012 and 2015 were converted to a daily time step with a step function and sinusoidal interpolation. In terms of spatial interpolation, the model was tested with raw values of δ18OP collected at a specific sampling point and with δ18OP interpolated using kriging to gain the spatial pattern of precipitation. The effect of the spatial and temporal interpolation techniques on the modeled SAS functions was analyzed using different parameterizations of the SAS function (i.e., power law timeinvariant, power law time-variant and beta law). The results show how tracer input data with different distribution in time and space affect the SAS parameterization and water transit time. Moreover, they reveal preference of the sub-basins to mobilize either younger or older water, which has implications on how water flows through a catchment and on the fate of solutes.

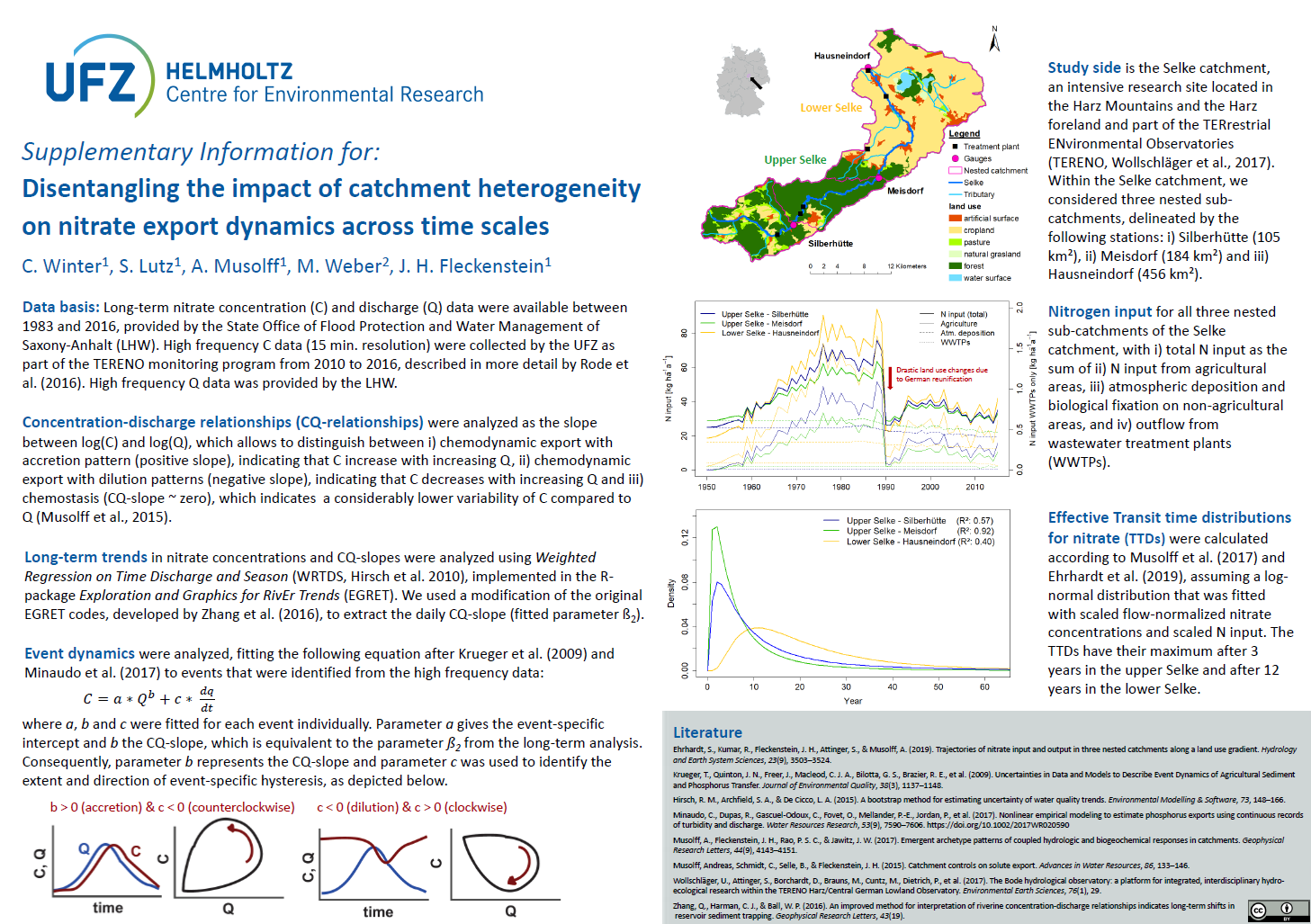

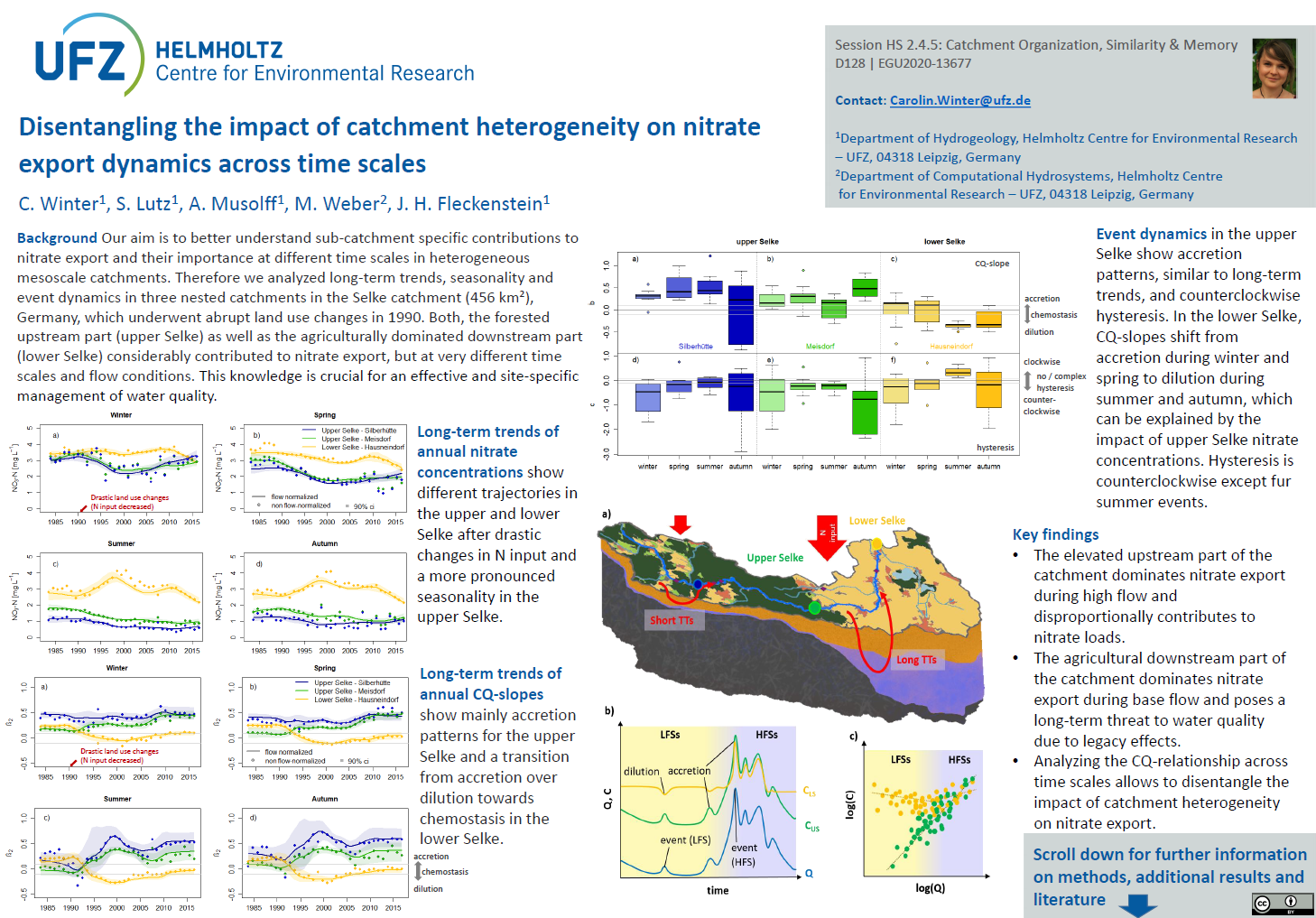

Disentangling the impact of catchment heterogeneity in a mesoscale catchment on nitrate export dynamics across time scales

EGU 2020 Carolin Winter, Stefanie Lutz, Andreas Musolff, Michael Weber, Jan H. Fleckenstein
Abstract: High nitrate concentrations in groundwater and surface water are a long-known but still widespread problem. To most efficiently reduce nitrate pollution, a detailed understanding of catchment organization and the catchment internal processes that drive nitrate mobilization, transport and storage across time scales is needed. Especially in mesoscale catchments (101 – 10³ km²), spatial heterogeneity adds another layer of complexity to these processes compared to headwater catchments. To address this issue, we analyzed seasonal long-term trends (1983 – 2016) and high frequency event dynamics (2010 – 2016) of nitrate concentrations, loads and the concentration-discharge relationship (CQ-slope) in three nested catchments within the Selke catchment (Germany). Transit time distributions (TTDs) were calculated for each nested catchment to analyze the response of nitrate export to changes in nitrogen surplus. The upper part of the Selke catchment is dominated by forests with only little agriculture and an overall lower nitrogen surplus, while the lower Selke is dominated by agriculture and a higher nitrogen surplus. Surprisingly, we found a disproportionally high contribution to nitrate loads from the forestdominated upper Selke (64% of average annual load at the Selke outlet), caused by high nitrate concentrations during wet seasons ( average of 2.5 mg-N L-1 during winter and spring) while dry season nitrate concentrations are relatively low (average of 1.1 mg-N L-1 during summer and autumn). These seasonally high concentrations can be explained by the sub-catchment characteristics such as shallow soils and steeper slopes that lead to a low retention capacity and short effective transit times (peak of TTD after 2 years, indicating a fast response to changes in nitrogen surplus). The increase of nitrate concentrations with discharge resulted in a positive CQslope that was consistently observed in long-term dynamics and during events. In the lower Selke, nitrate concentrations are relatively constant across seasons (around 3.1 mg-N L-1). This dynamic is caused by deeper aquifers, long effective transit times (peak of TTD at the Selke outlet after 14 years, indicating a delayed response to changes in nitrogen surplus) and legacy stores of nitrate that constantly release into the Selke River. Consequently, the lower Selke dominates nitrate concentrations and loads exported during dry seasons and is characterized by lower CQ-slopes compared to the upper Selke. Our study shows that the contribution of different sub-catchments to elevated nitrate concentrations can vary greatly between seasons, flow conditions and in their response to changes in nitrogen surplus. It is, therefore, not enough to focus on areas of highest nitrogen surplus – such as the upper Selke; instead, an assessment of all characteristic subcatchments, their temporally variable contribution to nitrate export and their specific TTDs is needed to place reduction measures most effectively and to estimate realistic time scales for their success.

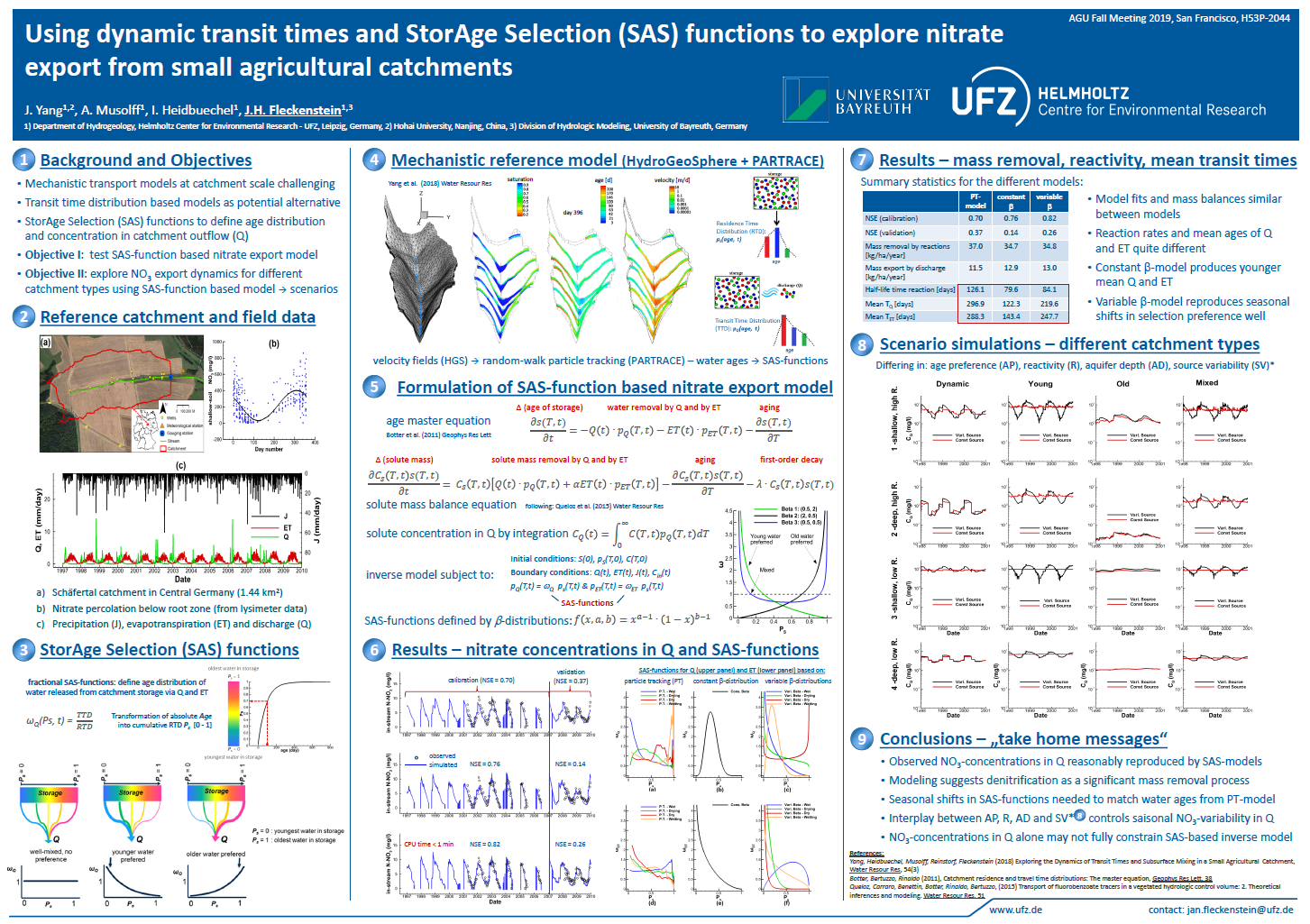

Using dynamic transit times and StorAge Selection (SAS) functions to explore nitrate export from small agricultural catchments

AGU 2019 Jie Yang, Andreas Musolff, Ingo Heidbüchel, Jan H. Fleckenstein
Abstract: Catchment-scale transit time distributions (TTDs) for discharge and residence time distributions of the water in storage (RTDs) are promising tools to characterize the discharge and mixing behavior of a catchment and can help to interpret the associated solute loads to the stream in a spatially implicit way. TTDs and RTDs are dynamic in time, inuenced by dynamic rainfall and evapotranspiration forcing, and changing groundwater storage in the catchment. In order to explore the dynamics of transit times and subsurface mixing in the small agricultural catchment Schfertal, in central Germany, a 3D hydrological model was set up for the catchment using the fully coupled surface-subsurface numerical model HydroGeoSphere. The model was calibrated using discharge and groundwater level measurements, and runs transiently for a period of 10 years from 1997 to 2007. A particle tracking tool was implemented in HGS to track the movement of water parcels in the subsurface, outputting TTDs of channel discharge and RTDs of groundwater storage at daily intervals.

Results show strong seasonal fluctuations of the median transit time of discharge and median residence time. The median transit time of discharge is strongly related to wetness of the catchment, while the residence time is not. Computed fractional StorAge Selection functions suggest systematic seasonal shifts of the selection preference during discharge production (Figure 1): In the wet period, the youngest water in storage is preferentially selected, and the preference shifts gradually to older water in storage when the catchment transitions into periods of drying, dry and wetting. Those changes are driven by distinct shifts of the dominant flow paths between deeper flow paths and fast shallow flow paths. Changes in the shape of the fSAS functions can be captured by changes in the two parameters of the approximating Beta distributions. The results improve our understanding of the dynamics of TTDs and fSAS functions for a complex real-world catchment and are important for interpreting the solute exports to the stream in a spatially implicit manner.

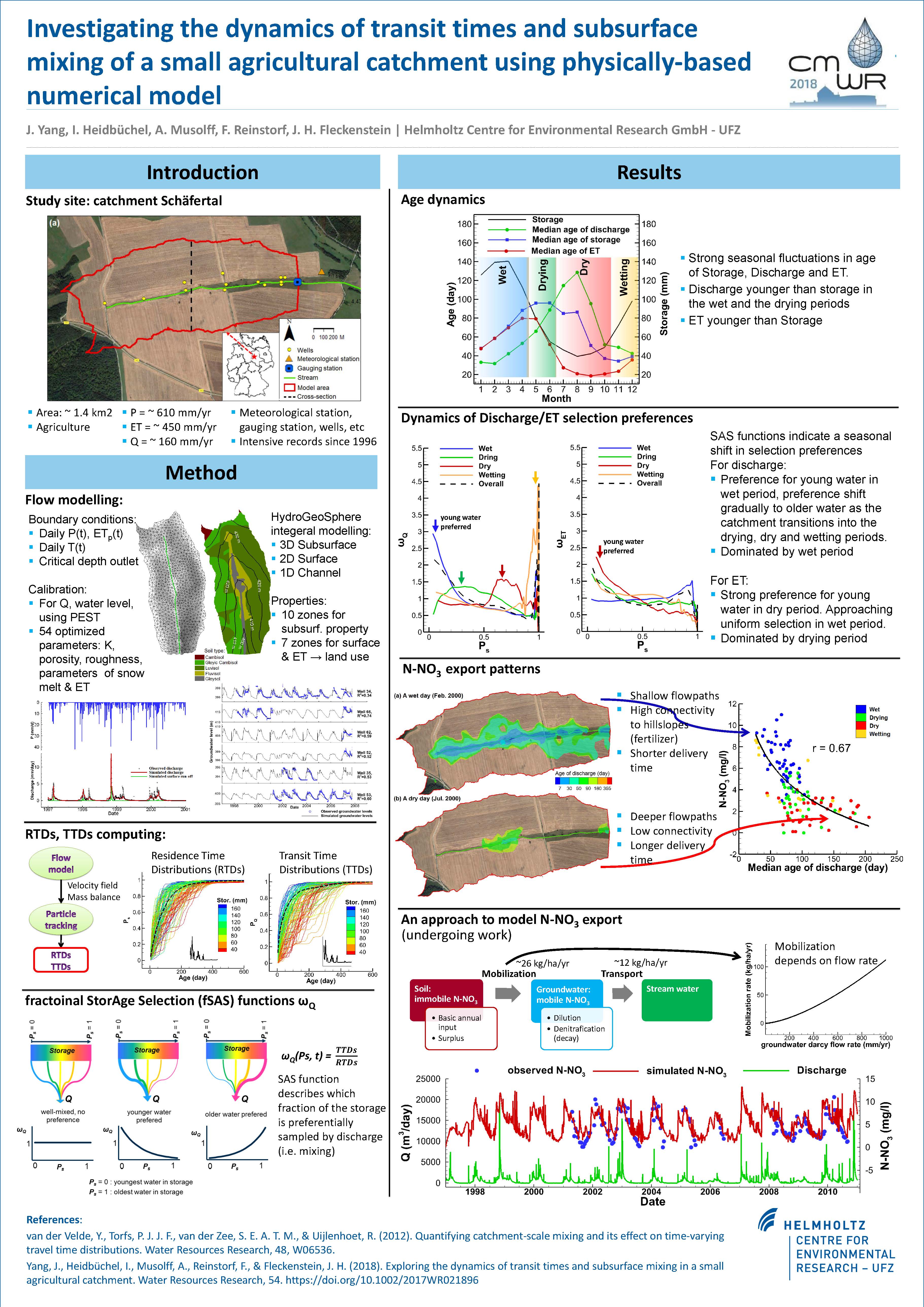

Investigating the dynamics of transit times and subsurface mixing of a small agricultural catchment using physically-based numerical model

CMWR 2018 Jie Yang, Ingo Heidbüchel, Andreas Musolff, Frido Reinstorf, Jan H. Fleckenstein
Abstract: Catchment-scale transit time distributions (TTDs) for discharge and residence time distributions of the water in storage (RTDs) are promising tools to characterize the discharge and mixing behavior of a catchment and can help to interpret the associated solute loads to the stream in a spatially implicit way. TTDs and RTDs are dynamic in time, inuenced by dynamic rainfall and evapotranspiration forcing, and changing groundwater storage in the catchment. In order to explore the dynamics of transit times and subsurface mixing in the small agricultural catchment Schfertal, in central Germany, a 3D hydrological model was set up for the catchment using the fully coupled surface-subsurface numerical model HydroGeoSphere. The model was calibrated using discharge and groundwater level measurements, and runs transiently for a period of 10 years from 1997 to 2007. A particle tracking tool was implemented in HGS to track the movement of water parcels in the subsurface, outputting TTDs of channel discharge and RTDs of groundwater storage at daily intervals.

Results show strong seasonal fluctuations of the median transit time of discharge and median residence time. The median transit time of discharge is strongly related to wetness of the catchment, while the residence time is not. Computed fractional StorAge Selection functions suggest systematic seasonal shifts of the selection preference during discharge production (Figure 1): In the wet period, the youngest water in storage is preferentially selected, and the preference shifts gradually to older water in storage when the catchment transitions into periods of drying, dry and wetting. Those changes are driven by distinct shifts of the dominant flow paths between deeper flow paths and fast shallow flow paths. Changes in the shape of the fSAS functions can be captured by changes in the two parameters of the approximating Beta distributions. The results improve our understanding of the dynamics of TTDs and fSAS functions for a complex real-world catchment and are important for interpreting the solute exports to the stream in a spatially implicit manner.

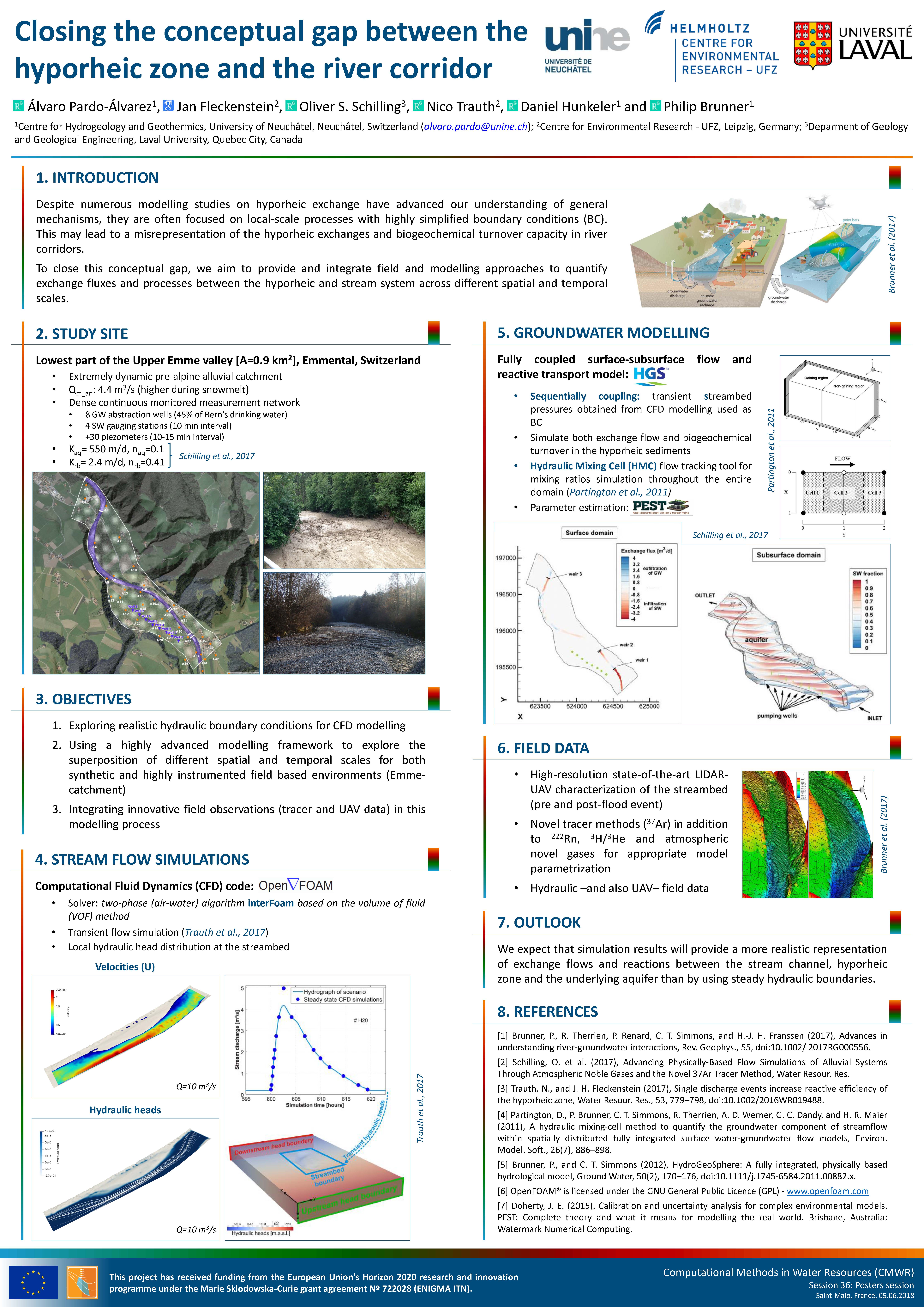

Closing the conceptual gap between the hyporheic zone and the river corridor

CMWR 2018 Álvaro Pardo-Álvarez, Jan H. Fleckenstein, Oliver S. Schilling, Nico Trauth, Daniel Hunkeler, and Philip Brunner
Abstract: Despite their critical importance for stream ecology, biogeochemistry and water quality, the interactions and feedback mechanisms across the different spatial and temporal scales of the hyporheic zone and the river corridor remain poorly understood. Although numerous modelling studies on hyporheic exchange have advanced our understanding of general mechanisms, they are often focused on local-scale processes with highly simplified boundary conditions. This may lead to a misrepresentation of the hyporheic exchanges and biogeochemical turnover capacity in river corridors. To close this conceptual gap, we aim to provide and integrate field and modelling approaches to quantify exchange fluxes and processes between the hyporheic and stream system across different spatial and temporal scales (see Figure 1) for a highly instrumented fieldsite in Switzerland (Emme-catchment). In order to achieve this objective, the surface flow model OpenFOAM will be initially used to obtain local hydraulic heads at the riverbed. Results of streambed pressure will be then used to drive a subsurface flow and reactive transport model (local coupling) to simulate both exchange flow and biogeochemical turnover in the hyporheic sediments. Transient reach-scale boundary conditions for the latter hyporheic model will be directly obtained from the integrated surface-subsurface hydrological model HydroGeoSphere (HGS). These models will be based on a high-resolution characterization of the streambed acquired with a state-of-the-art LIDAR-UAV and will integrate new and innovative tracer-based methods taking advantage of very recent developments in sensor technology, such as the portable mass spectrometer (MiniRuedi) developed by Brennwald et al. [2016] for on-site dissolved gas concetrations analysis, in addition to hydraulic – and also UAV- field data. Using this approach, we expect that simulation results will provide a more realistic representation of hyporheic flows and the dynamics feedbacks between the stream channel, hyporheic zone and the underlying aquifer than by using steady hydraulic boundaries.

Understanding DOC mobilization dynamics through high frequency measurements in a headwater catchment

AGU 2017 Benedikt Werner, Andreas Musolff, Oliver Lechtenfeld, Gerrit de Rooij, Toralf Keller, Marieke Oosterwoud, and Jan H. Fleckenstein
Abstract: Increasing dissolved organic carbon (DOC) exports from headwater catchments impact the quality of downstream waters and pose challenges to potable water supply. The importance of riparian zones for DOC export from catchments in humid, temperate climates has generally been acknowledged, but the hydrological controls and biogeochemical factors that govern mobilization of DOC from riparian zones remain elusive. By analyzing high-frequency time series of UV-Vis absorption spectra based water quality we therefore aim at a better understanding of the temporal dynamics of DOC mobilization and exports. In a first step a one-year high-frequency (15 minutes) data set from a headwater catchment in the Harz Mountains (Germany) was systematically analyzed for event-based patterns in DOC concentrations. Here, a simplistic linear model was generated to explain DOC concentration level and variability in the stream. Furthermore, spectral slopes (275 nm – 295 nm) and specific UV absorption at 254 nm SUVA254 ) was used to fingerprint in-stream DOC during events. Continuous DOC concentrations were best predicted (R², NSE = 0.62) by instantaneous discharge (Q) and antecedent wetness conditions of the last 30 days (AWC30 = Precip.30 - PET30) as well as mean air temperature and mean discharge of the preceding 30 days. Analyses of 36 discharge events revealed seasonal trends for the slope, intercept and R² of linear log(DOC)-log(Q) regressions that can be best explained by the mean air temperature of the preceding 15 days. Continuously available optical DOC quality parameters SUVA254 and spectral slope (275 nm – 295 nm) systematically changed with shifts in discharge and in DOC concentration expressing higher DOC aromaticity and oxygen content and increasing amount of low molecular weight DOC compounds at high flow conditions. The change of DOC quality parameters during events indicate a shift in the activated source zones: DOC with a different quality was mobilized during high flow conditions when higher groundwater levels connected formerly disconnected DOC source zones to the stream. We conclude that the high concentration variability of DOC can be explained by a few controlling variables only. These variables can be linked to event-based DOC source activation and more seasonal controls of DOC production.

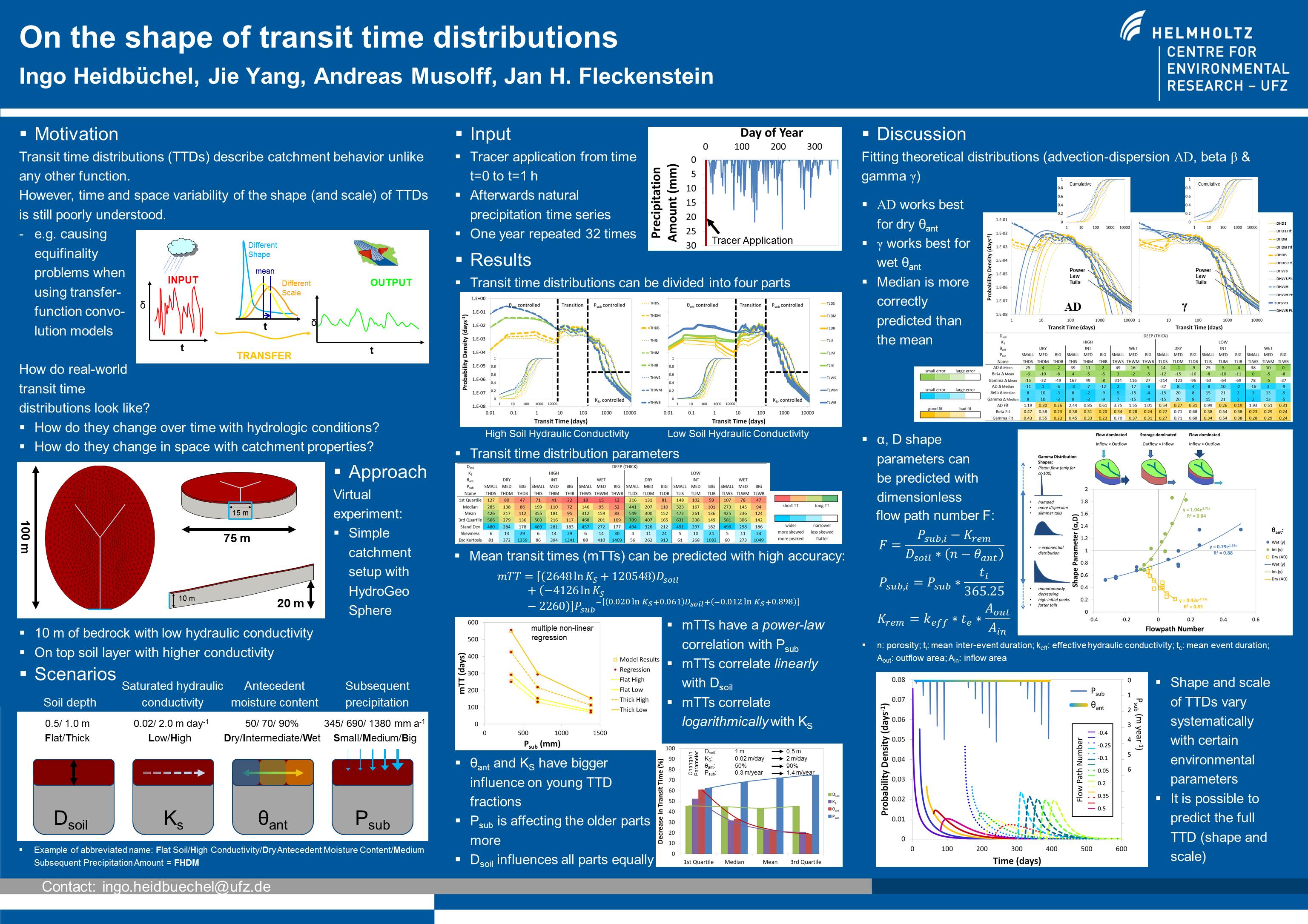

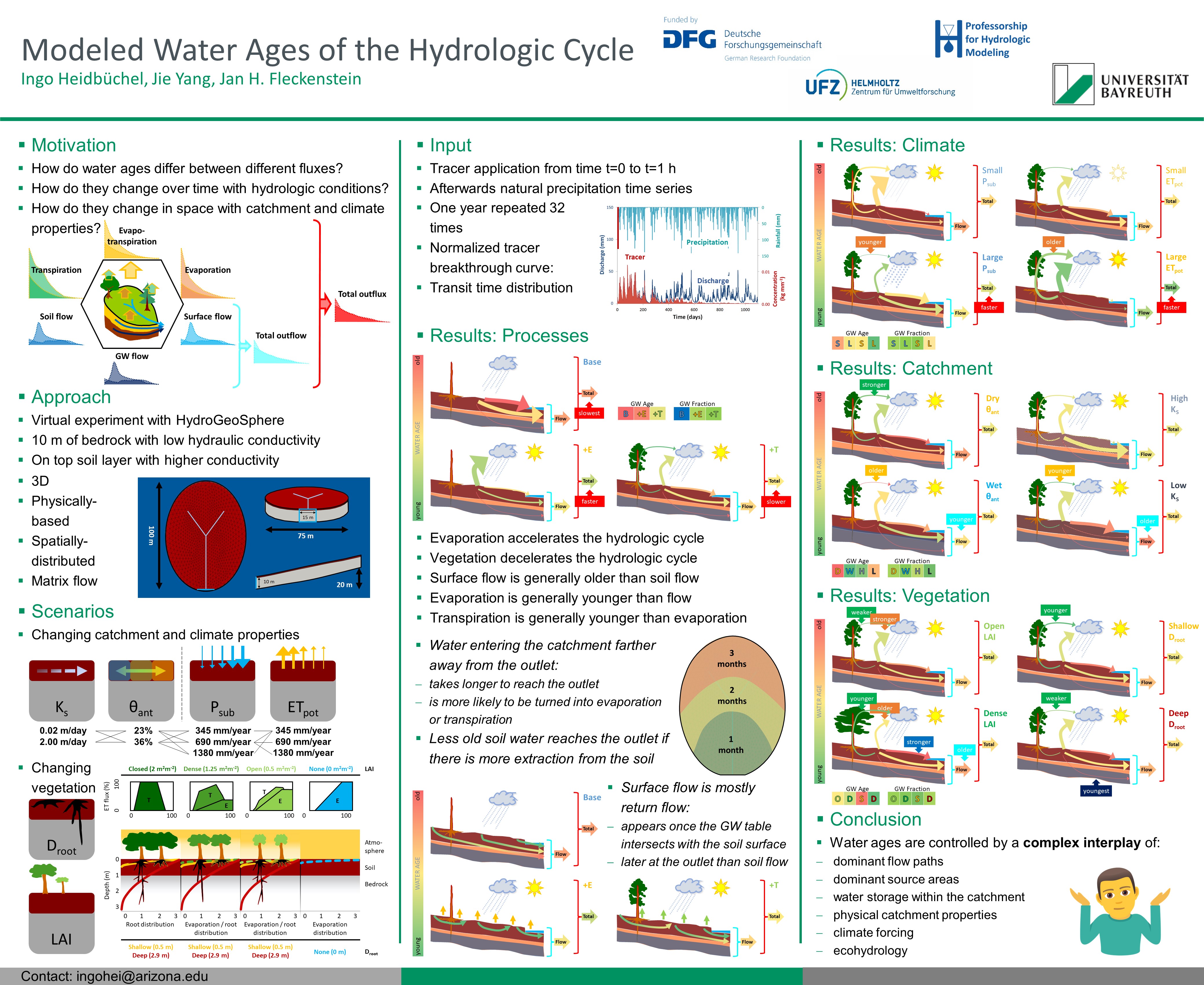

On the shape of transit time distributions

AGU 2017 Ingo Heidbüchel, Jie Yang, Andreas Musolff, Jan H. Fleckenstein
Abstract: The way catchments store and release incoming water can be characterized by transit time distributions (TTD). The mean and the general shapes of these TTDs provide valuable information on the timing of hydrochemical catchment response and biogeochemical cycling. In the past the distributions have been assumed to be time-invariant, continuous, smooth and unimodal functions. More recently there have been attempts to make the distributions variable in time and loosen the functional shape to allow for multimodality and discontinuity. This variability is realistic but causes equifinality and therefore non-unique mean transit times, e.g. when using TTDs as transfer functions in convolution models.

We conducted virtual experiments to relate the shape of transit time distributions to catchment properties, hydrologic state and precipitation event characteristics. We used HydroGeoSphere (a distributed physically-based hydrologic model) to track the transit of marked precipitation events through a catchment. A three-dimensional hillslope was created with a more conductive ‘soil’ layer at the surface and a less conductive bedrock layer at depth. Depth and saturated hydraulic conductivity of the soil layer were changed between the model runs. Furthermore the model was initiated with three different moisture states. The intensity of the subsequent precipitation (i.e. the precipitation that fell after the tracked event had ceased) was also varied. Combining all the variable parameters resulted in 36 distinct scenarios that produced 36 distinct TTDs.

The resulting TTDs of the model runs were compared to potential transfer functions with varying shape parameters. They ranged from gamma distributions with high initial peaks to more damped beta and advection-dispersion distributions. We found these variations to be caused by a combination of controlling factors. Variations in space were due to differences in soil depth and saturated hydraulic conductivity, variations in time due to different antecedent moisture contents and subsequent precipitation amounts. The resulting location and state-dependent variable transfer functions help us to better understand solute transport at the catchment scale and make transit time determination via convolution models more accurate and reliable.

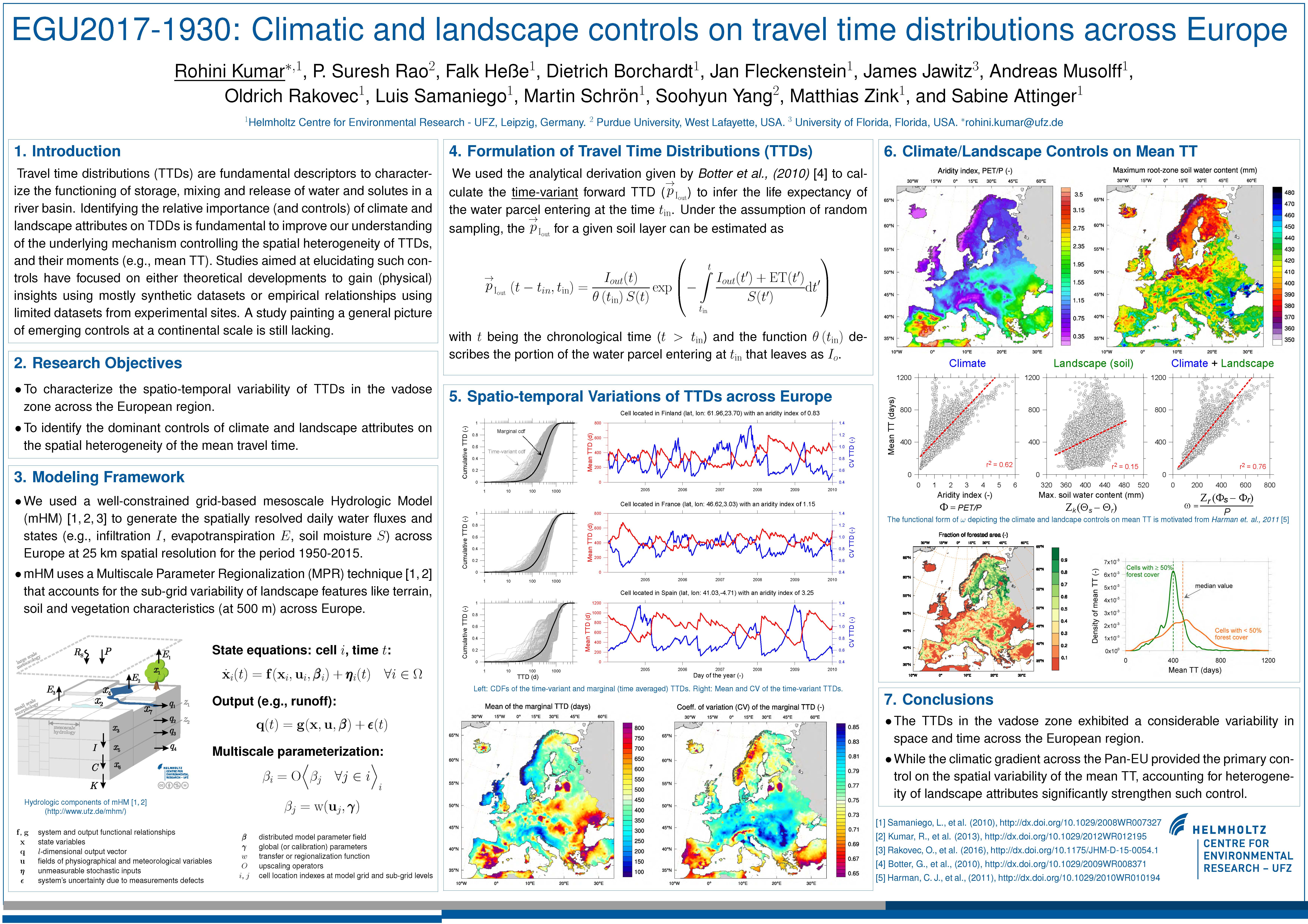

Climatic and landscape controls on travel time distributions across Europe

EGU 2017 Rohini Kumar, Suresh Rao, Falk Hesse, Dietrich Borchardt, Jan H. Fleckenstein, James Jawitz, Andreas Musolff, Oldrich Rakovec, Luis Samaniego, Soohyun Yang, Matthias Zink, and Sabine  Attinger
Abstract: Travel time distributions (TTDs) are fundamental descriptors to characterize the functioning of storage, mixing and release of water and solutes in a river basin. Identifying the relative importance (and controls) of climate and landscape attributes on TDDs is fundamental to improve our understanding of the underlying mechanism controlling the spatial heterogeneity of TTDs, and their moments (e.g., mean TT). Studies aimed at elucidating such controls have focused on either theoretical developments to gain (physical) insights using mostly synthetic datasets or empirical relationships using limited datasets from experimental sites. A study painting a general picture of emerging controls at a continental scale is still lacking.

In this study, we make use of spatially resolved hydrologic fluxes and states generated through an observationally driven, mesoscale Hydrologic Model (mHM; www.ufz.de/mhm) to comprehensively characterize the dominant controls of climate and landscape attributes on TDDs in the vadose zone across the entire European region. mHM uses a novel Multiscale Parameter Regionalization (MPR; Samaniego et al., 2010 and Kumar et al., 2013) scheme that encapsulates fine scale landscape attributes (e.g., topography, soil, and vegetation characteristics) to account for the sub-grid variability in model parameterization. The model was established at 25 km spatial resolution to simulate the daily gridded fluxes and states over Europe for the period 1955-2015. We utilized recent developments in TTDs theory (e.g., Botter et al., 2010, Harman et al., 2011) to characterize the stationary and non-stationary behavior of water particles transported through the vadose zone at every grid cell.

Our results suggest a complex set of interactions between climate and landscape properties controlling the spatial heterogeneity of the mean travel time (TT). The spatial variability in the mean TT across the Pan-EU generally follows the climatic gradient with lower values in humid regions and higher in semi-arid or drier regions. The results signifies the role of a landscape attributes like plant available soil-water-storage capacity, when expressed in a dimensionless number that also include climate attributes such as average rain depth and aridity index, forms a potentially useful predictor for explaining the spatial heterogeneity of mean TTs. Finally, the study also highlights the time-varying behavior of TTDs and discusses the seasonal variation in mean TTs across Europe.

Coupled long term simulation of reach scale water and heat fluxes across the river groundwater interface and hyporheic temperature dynamics

EGU 2017 Matthias Munz, Sascha E. Oswald, and Christian Schmidt
Abstract: Flow pattern and seasonal as well as diurnal temperature variations control ecological and biogeochemical conditions in hyporheic sediments. In particular, hyporheic temperatures have a great impact on many microbial processes. In this study we used 3-D coupled water flow and heat transport simulations applying the HydroGeoSphere code in combination with high frequent observations of hydraulic heads and temperatures for quantifying reach scale water and heat flux across the river groundwater interface and hyporheic temperature dynamics of a lowland gravel-bed river. The magnitude and dynamics of simulated temperatures matched the observed with an average mean absolute error of 0.7 C and an average Nash Sutcliffe Efficiency of 0.87. Our results highlight that the average temperature in the hyporheic zone follows the temperature in the river which is characterized by distinct seasonal and daily temperature cycles. Individual hyporheic flow path temperature substantially varies around the average hyporheic temperature. Hyporheic flow path temperature was found to strongly depend on the flow path residence time and the temperature gradient between river and groundwater; that is, in winter the average flow path temperature of long flow paths is potentially higher compared to short flow paths. Based on the simulation results we derived a general empirical relationship, estimating the influence of hyporheic flow path residence time on hyporheic flow path temperature. Furthermore we used an empirical temperature relationship between effective temperature and respiration rate to estimate the influence of hyporheic flow path residence time and temperature on hyporheic oxygen consumption. This study highlights the relation between complex hyporheic temperature patterns, hyporheic residence times and their implications on temperature sensitive biogeochemical processes.

Analysis of temperature time series to estimate direction and magnitude of water fluxes in near-surface sediments

EGU 2017 Matthias Munz, Sascha E. Oswald, and Christian Schmidt
Abstract: The application of heat as a hydrological tracer has become a standard method for quantifying water fluxes between groundwater and surface water. Typically, time series of temperatures in the surface water and in the sediment are observed and are subsequently evaluated by a vertical 1D representation of heat transport by advection and dispersion. Several analytical solutions as well as their implementation into user-friendly software exist in order to estimate water fluxes from the observed temperatures. The underlying assumption of a stationary, one-dimensional vertical flow field is frequently violated in natural systems. Here subsurface water flow often has a significant horizontal component.We developed a methodology for identifying the geometry of the subsurface flow field based on the variations of diurnal temperature amplitudes with depths. For instance: Purely vertical heat transport is characterized by an exponential decline of temperature amplitudes with increasing depth. Pure horizontal flow would be indicated by a constant, depth independent vertical amplitude profile. The decline of temperature amplitudes with depths could be fitted by polynomials of different order whereby the best fit was defined by the highest Akaike Information Criterion. The stepwise model optimization and selection, evaluating the shape of vertical amplitude ratio profiles was used to determine the predominant subsurface flow field, which could be systematically categorized in purely vertical and horizontal (hyporheic, parafluvial) components.

Analytical solutions to estimate water fluxes from the observed temperatures are restricted to specific boundary conditions such as a sinusoidal upper temperature boundary. In contrast numerical solutions offer higher flexibility and can handle temperature data which is characterized by irregular variations such as storm-event induced temperature changes and thus cannot readily be incorporated in analytical solutions. There are several numerical models that simulate heat transport in porous media (e.g. VS2DH, HydroGeoSphere, FEFLOW) but there can be a steep learning curve to the modelling frameworks and may therefore not readily accessible to routinely infer water fluxes between groundwater and surface water.We developed a user-friendly, straightforeward to use software to estimate water FLUXes Based On Temperatures- FLUX-BOT. FLUX-BOT is a numerical code written in MATLAB that calculates time variable vertical water fluxes in saturated sediments based on the inversion of measured temperature time series observed at multiple depths. It applies a cell-centered Crank-Nicolson implicit finite difference scheme to solve the one-dimensional heat advection-conduction equation (FLUX-BOT can be downloaded from the following web site: https://bitbucket.org/flux-bot/flux-bot). We provide applications of FLUX-BOT to generic as well as to measured temperature data to demonstrate its performance.

Both, the empirical analysis of temperature amplitudes as well as the numerical inversion of measured temperature time series to estimate the vertical magnitude of water fluxes extent the suite of current heat tracing methods and may provide insight into temperature data from an additional perspective.

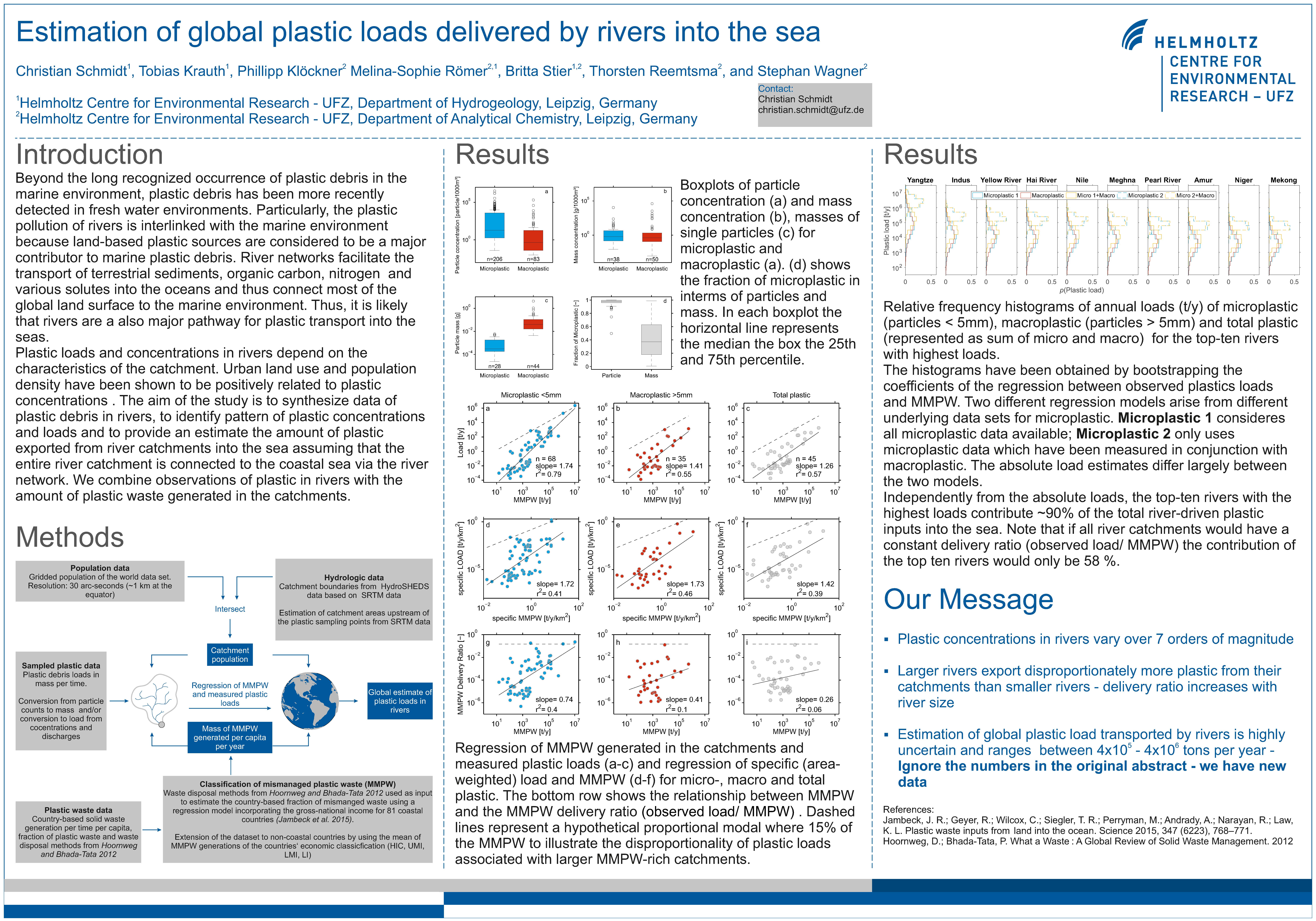

Estimation of global plastic loads delivered by rivers into the sea

EGU 2017 Christian Schmidt, Tobias Krauth, Phillipp Klöckner, Melina-Sophie Römer, Britta Stier, Thorsten Reemtsma, and Stephan Wagner
Abstract: A considerable fraction of marine plastic debris likely originates from land-based sources. Transport of plastics by rivers is a potential mechanism that connects plastic debris generated on land with the marine environment. We analyze existing and experimental data of plastic loads in rivers and relate these to the amount of mismanaged plastic waste (MMPW) generated in the river catchments. We find a positive relationship between the plastic load in rivers and the amount of MMPW. Using our empirical MMPW-plastic river load-relationship we estimated the annual plastic load for 1494 rivers, ranging from small first order streams to large rivers, which have an outlet to the sea.

We estimate that the global load of plastic debris delivered by rivers to the sea is 39000 tons per year with a large 95% prediction interval between 247 tons per year and 16.7 million tons per year, respectively. Our best estimate is considerably lower than the estimated total land-based inputs which range between 4.8-12.7 million tons anually (Jambeck et al. 2015). Approximately 75% of the total load is transported by the 10 top-ranked rivers which are predominantly located in Asia. These river catchments encompass countries with a large population and high economic growth but an insufficient waste infrastructure. Reducing the plastic loads in these rivers by 50% would reduce the global inputs by 37%.

Of the total MMPW generated within river catchments, only a small fraction of about 0.05 % has been found to be mobile in rivers. Thus, either only a small fraction of MMPW enters the river systems, or a substantial fraction of plastic debris accumulates in river systems world wide.

C, N, P export regimes in rivers from headwater to downstream catchments

EGU 2017 Rémi Dupas, Andreas Musolff, James W. Jawitz, P. Suresh C. Rao, Jan H. Fleckenstein, Michael Rode, and Dietrich Borchardt
Abstract: Excessive amounts of nutrients and dissolved organic matter in freshwater bodies affect aquatic ecosystems. In this study, the spatial and temporal variability of nitrate (NO3), dissolved organic carbon (DOC) and soluble reactive phosphorus (SRP) was analyzed along the Selke river continuum from 1 – 3 km2 headwater catchments to 184 – 456 km2 downstream catchments, within the TERENO Harz/Central German Lowland Observatory. Three headwater catchments were selected as archetypes of the main landscape units (land use x soil type) present in the Selke catchment. Export regimes in these catchments were interpreted in terms of NO3, DOC and SRP landto- stream transfer processes. Differences between export regimes in headwater and downstream catchments were interpreted in terms of in-stream processes and contribution of point source emissions. The results showed that the NO3 seasonal dynamics were opposite compared to DOC and SRP in all three headwater catchments. These dynamics were interpreted as the result of the interplay of hydrological and biogeochemical processes, for which riparian wetlands were hypothesized to play a determining role. In the two downstream catchments, NO3 was transported almost conservatively, except during the summer period where in-stream retention could exceed 50%. Allochtonous DOC was consumed in the upstream river section (with low light and nutrient availability) and autochthonous DOC was produced in the downstream river section (with high light and nutrients availability); the natural export regime of SRP mimicked a point source signal, which may lead to misattribution and thus overestimation of domestic contribution to phosphorus loads in rivers. Monitoring the river continuum from headwater to downstream rivers proved effective to investigate jointly land-to-stream and in-stream transport and transformation processes.

Using a physically-based water flow model to explore the dynamics of transit times and mixing in a small agricultural catchment

EGU 2017 Jie Yang, Ingo Heidbüchel, Andreas Musolff, and Jan H. Fleckenstein
Abstract: Catchment-scale transit time distributions (TTDs) for discharge and residence time distributions of the water in storage (RTDs) are promising tools to characterize the discharge and mixing behavior of a catchment and can help to interpret the associated solute loads to the stream in a spatially implicit way. TTDs and RTDs are dynamic in time, influenced by dynamic rainfall and evapotranspiration forcing, and changing groundwater storage in the catchment. In order to understand the links between the dynamics of TTDs and groundwater mixing in the small agricultural catchment Schäfertal, in central Germany, a 3D hydrological model was set up for the catchment using the fully coupled surface-subsurface numerical model HydroGeoSphere (HGS). The model is calibrated using discharge and groundwater level measurements, and runs transiently for a period of 10 years from 1997 to 2007. A particle tracking tool was implemented in HGS to track the movement of water parcels in the subsurface, outputting TTDs of channel discharge and RTDs of groundwater storage at daily intervals.

Results show that the mean age of the discharge water is significantly younger than that of the water in storage, indicating a poorly mixed subsurface. Discharge preferentially samples faster flowing younger water originating from the more conductive top parts of the aquifer. Spatial variations of the age of water in storage are observed, highly influenced by aquifer heterogeneity. Computed StorAge Selection (SAS) functions [Rinaldo et al. 2015] show clear shifts in the discharge sampling preferences between wet and dry states: during wet states in winter and spring, discharge has a preference for younger water because the shallow flow paths are active due to high groundwater levels and low evapotranspiration. Conversely, during dry states in summer and autumn, discharge has a preference for older water because the shallow flow paths are inactive due to low groundwater levels and stronger evapotranspiration. Measured nitrate (NO3) loads in discharge, mainly originating from fertilizer in shallow soils, decrease significantly with decreasing wetness of the catchment. This trend confirms the shifts of discharge sampling preferences between wet and dry states.

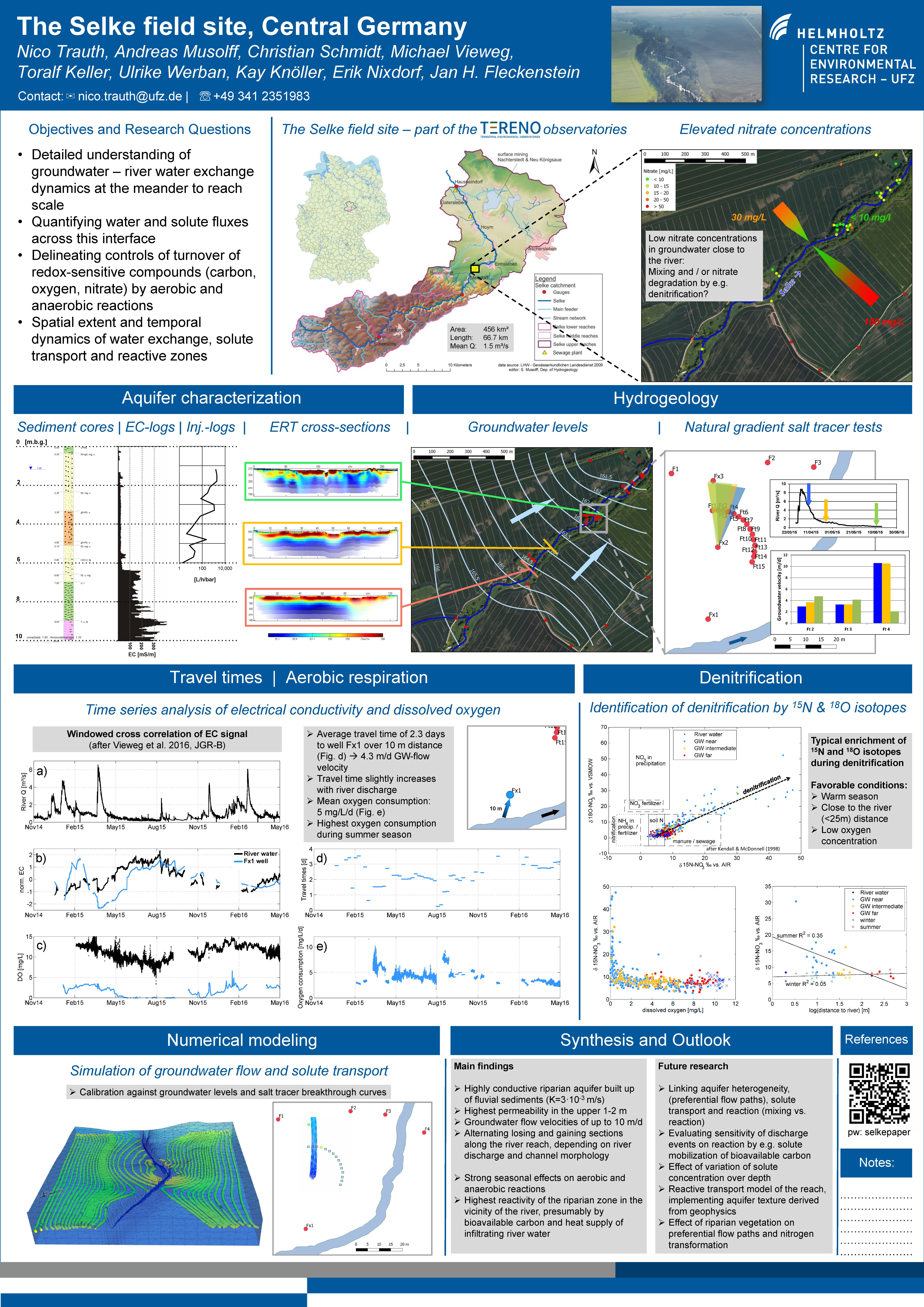

The Selke field site, Central Germany

Nico Trauth, Andreas Musolff, Christian Schmidt, Michael Vieweg, Toralf Keller, Ulrike Werban, Kay Knöller, Erik Nixdorf, and Jan H. Fleckenstein
Objectives and Research Questions:
•Detailed understanding of groundwater – river water exchange dynamics at the meander to reach scale
•Quantifying water and solute fluxes across this interface
•Delineating controls of turnover of redox-sensitive compounds (carbon, oxygen, nitrate) by aerobic and anaerobic reactions
•Spatial extent and temporal dynamics of water exchange, solute transport and reactive zones

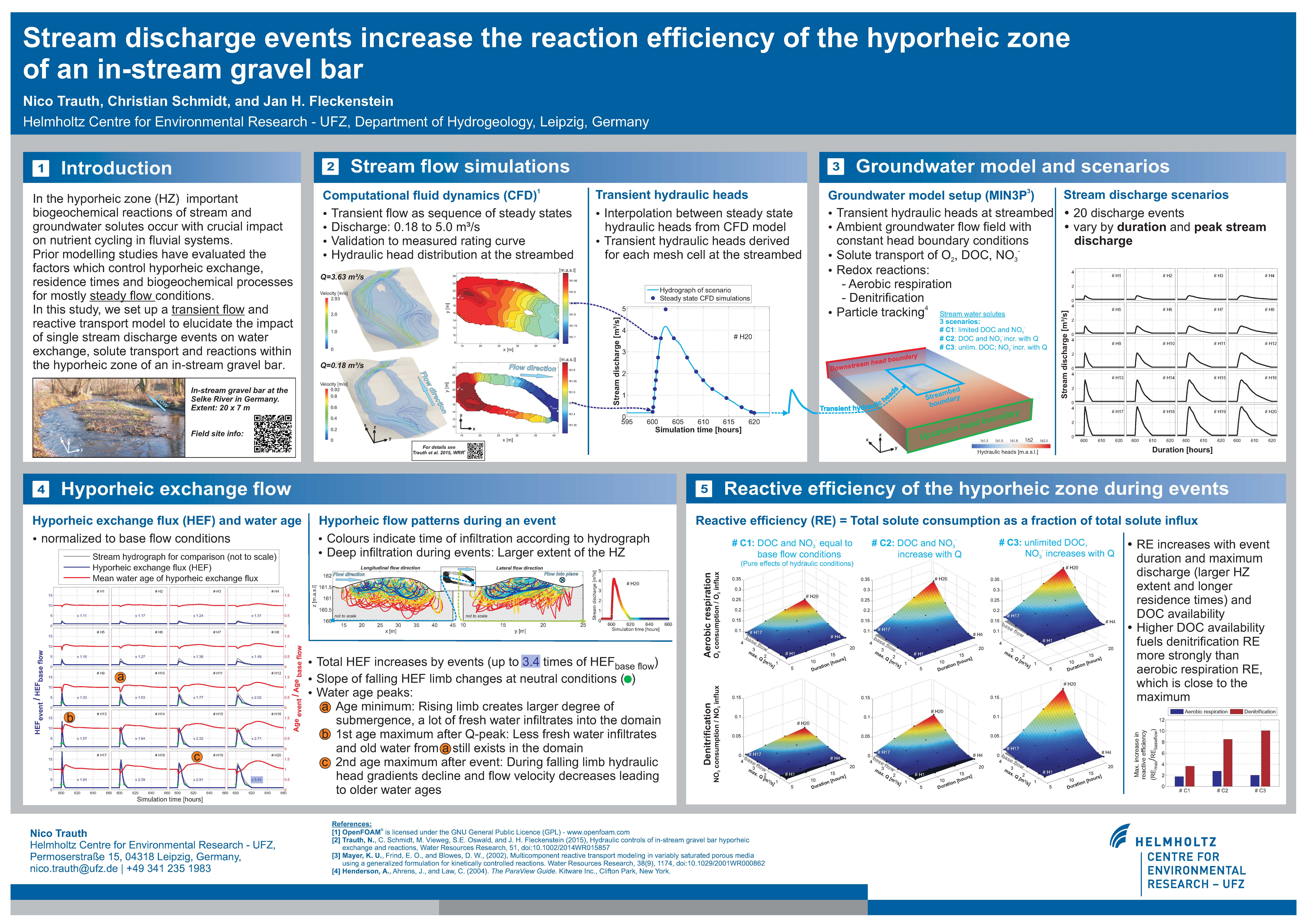

Stream discharge events increase the reaction efficiency of the hyporheic zone of an in-stream gravel bar

EGU 2016 Nico Trauth, Christian Schmidt, and Jan H. Fleckenstein
Abstract: Streambed structures such as dunes, pool-riffles or bars enhance the exchange of stream water and solutes with the subsurface, the hyporheic zone. Prior studies have evaluated the factors which control hyporheic exchange and biogeochemical processes for steady state hydrological conditions using numerical models. However, the impact of natural discharge variability on water and solute exchange, creating hydraulically specific conditions for the reactions in the shallow streambed, has not been studied thus far.

In our study, we set up a transient flow and reactive transport model to elucidate the impact of single stream discharge events on water exchange, solute transport and reactions within the hyporheic zone of an in-stream gravel bar. The discharge events were varied by their duration and the maximum stream discharge. Temporally variable hydraulic heads were assigned as hydraulic head boundary conditions at the top of the reactive groundwater model MIN3P. A steady ambient groundwater flow field was introduced by lateral upstream and downstream hydraulic head boundaries, generating in combination with the stream water level, losing, neutral, or gaining stream conditions. Stream water borne dissolved oxygen, dissolved organic carbon and nitrate can infiltrate across the top of the modelling domain, where aerobic respiration and denitrification are simulated. Our results show that water and solute exchange through the hyporheic zone (only stream water that infiltrates into the subsurface and exfiltrates back to the stream) is highly dependent on the interplay between event characteristics and the ambient groundwater level. In scenarios where the stream discharge shifts the hydraulic system to strong and long-lasting losing conditions, hyporheic flow paths are longer and the extent of the hyporheic zone deeper than under base flow conditions and small hydrologic events where gaining conditions prevail. Consequently, stream discharge events may temporally lead to increased reactivity efficiency (the proportion of solute consumption of solute influx) of the hyporheic zone by approximately 2.0 and 3.8 times for aerobic respiration and denitrification, respectively.

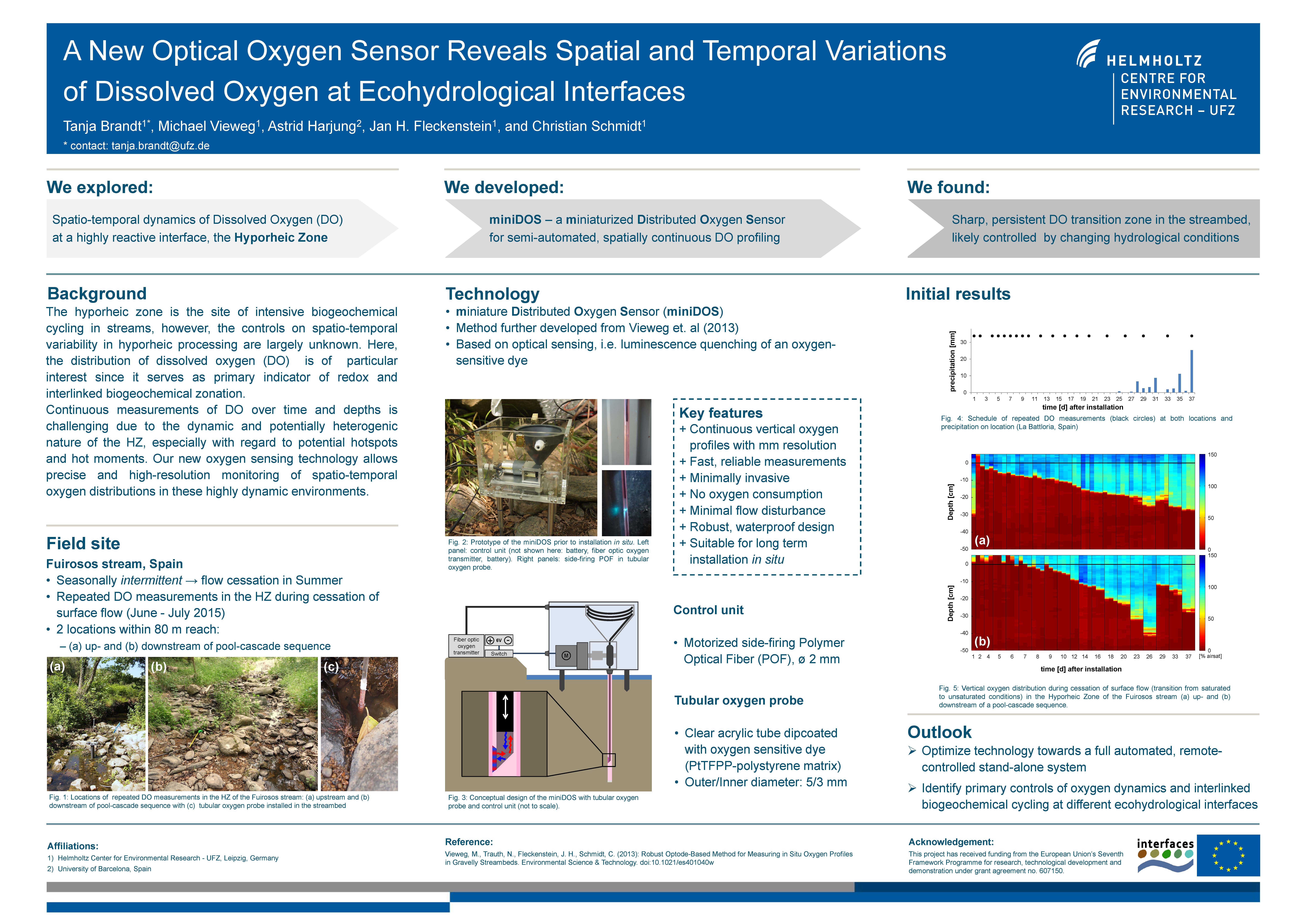

A New Optical Oxygen Sensor Reveals Spatial and Temporal Variations of Dissolved Oxygen at Ecohydrological Interfaces

AGU 2015 Tanja Brandt, Michael Vieweg, Astrid Harjung, Jan H. Fleckenstein, and Christian Schmidt
Abstract: The spatial and temporal distribution of dissolved oxygen (DO) at highly reactive aquatic interfaces, e.g. in the hyporheic zone (HZ), is a primary indicator of redox and interlinked biogeochemical zonations. However, continuous measuring of DO over time and depths is challenging due to the dynamic and potentially heterogenic nature of the HZ. We further developed a novel technology for spatially continuous in situ vertical oxygen profiling based on optical sensing (Vieweg et al, 2013). Continuous vertical measurements to a depth of 50 cm are obtained by the motor-controlled insertion of a side-firing Polymer Optical Fiber (POF) into tubular DO probes. Our technology allows minimally invasive DO measurements without DO consumption at high spatial resolution in the mm range. The reduced size of the tubular probe (diameter 5 mm) substantially minimizes disturbance of flow conditions. We tested our technology in situ in the HZ of an intermittent stream during the drying period. Repeated DO measurements were taken over a total duration of six weeks at two locations up- and downstream of a pool-cascade sequence. We were able to precisely map the spatial DO distribution which exhibited sharp gradients and rapid temporal changes as a function of changing hydrologic conditions. Our new vertical oxygen sensing technology will help to provide new insights to the coupling of transport of DO and biogeochemical reactions at aquatic interfaces.

A physically-based numerical model of catchment water flow to evaluate dominant controls of residence time distributions

AGU 2014 Markus Neubauer, Andreas Musolff, and Jan H. Fleckenstein
Abstract: The residence time distribution (RTD) of water within catchments is a tool to describe catchment-scale transport and mixing. To better understand dominant controls of RTDs and their time-invariant behavior we use a fully coupled three-dimensional numerical model of surface and subsurface flow. We carefully calibrate the model to the data-rich Schäfertal catchment in Central Germany and use this model as a base case for numerical experiments. Here we present first results of systematical variations of the model domain's bottom geometry and groundwater recharge rates. RTDs are derived on basis of post processing particle tracking algorithm. Results reveal a shift between unimodal and bimodal RTDs depending on the model volume and substantial drifts of water ages with changing groundwater recharge. Further numerical experiments will evaluate RTDs in the interplay between catchment's structural properties and dynamic climatic forcing.

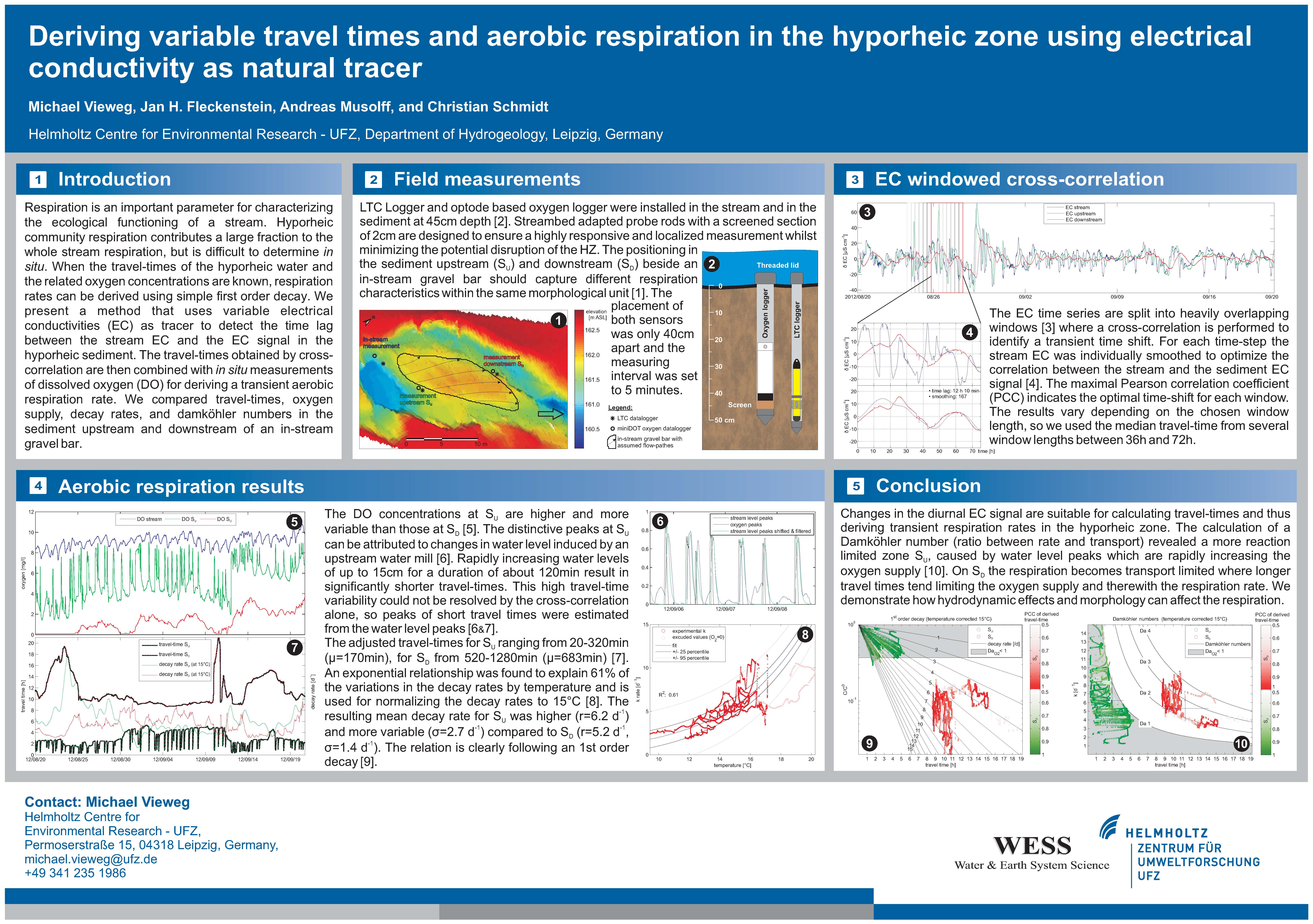

Deriving variable travel times and aerobic respiration in the hyporheic zone using electrical conductivity as natural tracer

EGU 2014 Michael Vieweg, Jan H. Fleckenstein, Andreas Musolff, and Christian Schmidt
Abstract: Determining oxygen consumption (respiration) rates is important for characterizing the ecological functioning of a stream. It is known, that respiration is strongly temperature dependent, but the variability over time and the effects of changing hydrologic conditions are still scarce. Existing respiration measuring methods mostly utilize ex situ respiration chambers, which do not necessarily represent the actual conditions in a riverbed.

We present an approach of transient in situ measurements, which utilize changes in the natural stream-EC signal as tracer for the advective transport in the streambed and combine these with precise oxygen measurements.

LTC Logger and optode based oxygen logger were installed in the stream and at 45cm depth beside an in-stream gravel bar. Streambed adapted probe rods with a screened section of 2 cm ensuring a minimized flow-through volume hold the loggers which were programmed to 5min interval measuring interval. Diurnal changes in the EC signal are considered to be quasi-conservative and were tracked in the subsurface. A windowed cross correlation approach was utilized to derive a time-resolved advective travel-time. Assuming a one dimensional flow-path from the stream into the sediment, the time-shift in the EC signal is interpreted as the peak travel time of a tracer breakthrough curve. Additionally a moving average filter of variable length was applied to the stream EC signal, to account for dispersion and further maximize the correlation. For obtaining an experimental respiration rate, the physical transport conditions are then applied to the oxygen data, assuming a first order decay.

The results show that the natural EC signal is applicable as tracer, as long as the measurements show distinctive fluctuations. The cross correlation revealed transient travel times with a range between 1-7h (mean 4h) at the upstream and 8-18h (mean 11h) at the downstream location of the gravel bar. There are strong indications, that the stream level is affecting the travel-time, albeit these effects differ depending on the morphology and strength of the streamflow events. The derived travel times allowed for estimating a transient respiration rate between 3 and 12 mg/l/day. Temperature was found to control over 70% of the variation of the respiration rate. The oxygen concentration in the streambed is more influenced by the variability of the respiration rate than of the travel time.

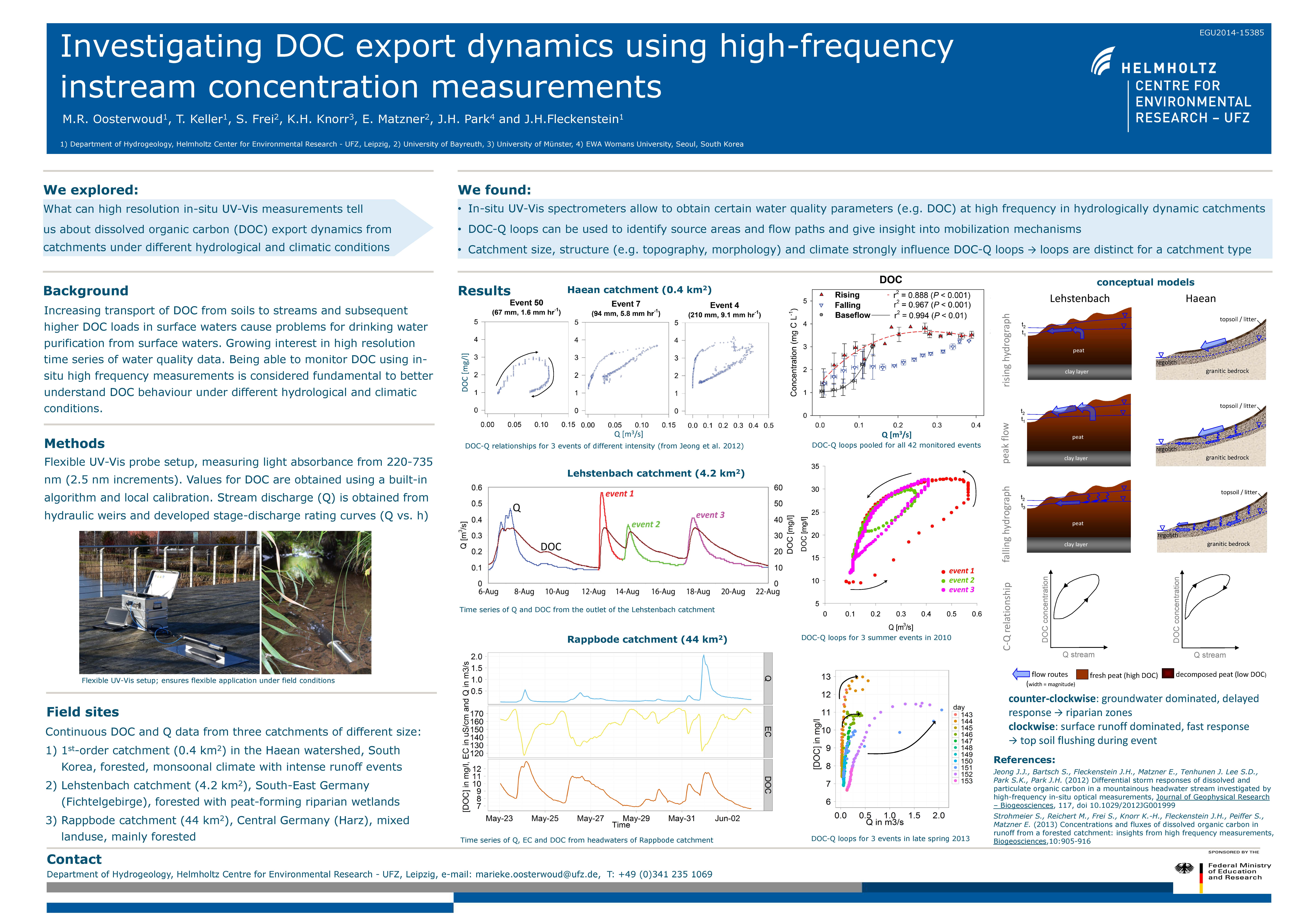

Investigating DOC export dynamics using high-frequency instream concentration measurements

EGU 2014 Marieke Oosterwoud, Toralf Keller, Andreas Musolff, Sven  Frei, Ji-Hyung Park, and Jan H. Fleckenstein
Abstract: Being able to monitor DOC concentrations using in-situ high frequency measurements makes it possible to better understand concentration-discharge behavior under different hydrological conditions. We developed a UV-Vis probe setup for modified/adapted use under field conditions. The quasi mobile probe setup allows a more flexible probe deployment.

New or existing monitoring sites can easily be equipped for quasi-continuous monitoring or measurements can be performed at changing locations, without the need for additional infrastructure. We were able to gather high frequency data on DOC dynamics for one year in two streams in the Harz mountains in Germany. It proved that obtaining accurate DOC concentrations from the UV-Vis probes required frequent maintenance and probe calibration. The advantage of the setup over standard monitoring protocols becomes evident when comparing net exports over a year. In addition to mass improved balance calculations the high-frequency measurements can reveal intricate hysteretic relationships between discharge and concentrations that can provide valuable insights into the hydrologic dynamics and mechanisms that govern the delivery of DOC to the receiving waters. Measurements with similar probes from two additional catchments in Southern Germany and South Korea will be used to illustrate different discharge-concentration relationships and what can be learned from them about the hydrologic mechanisms that control the dynamics of DOC export.

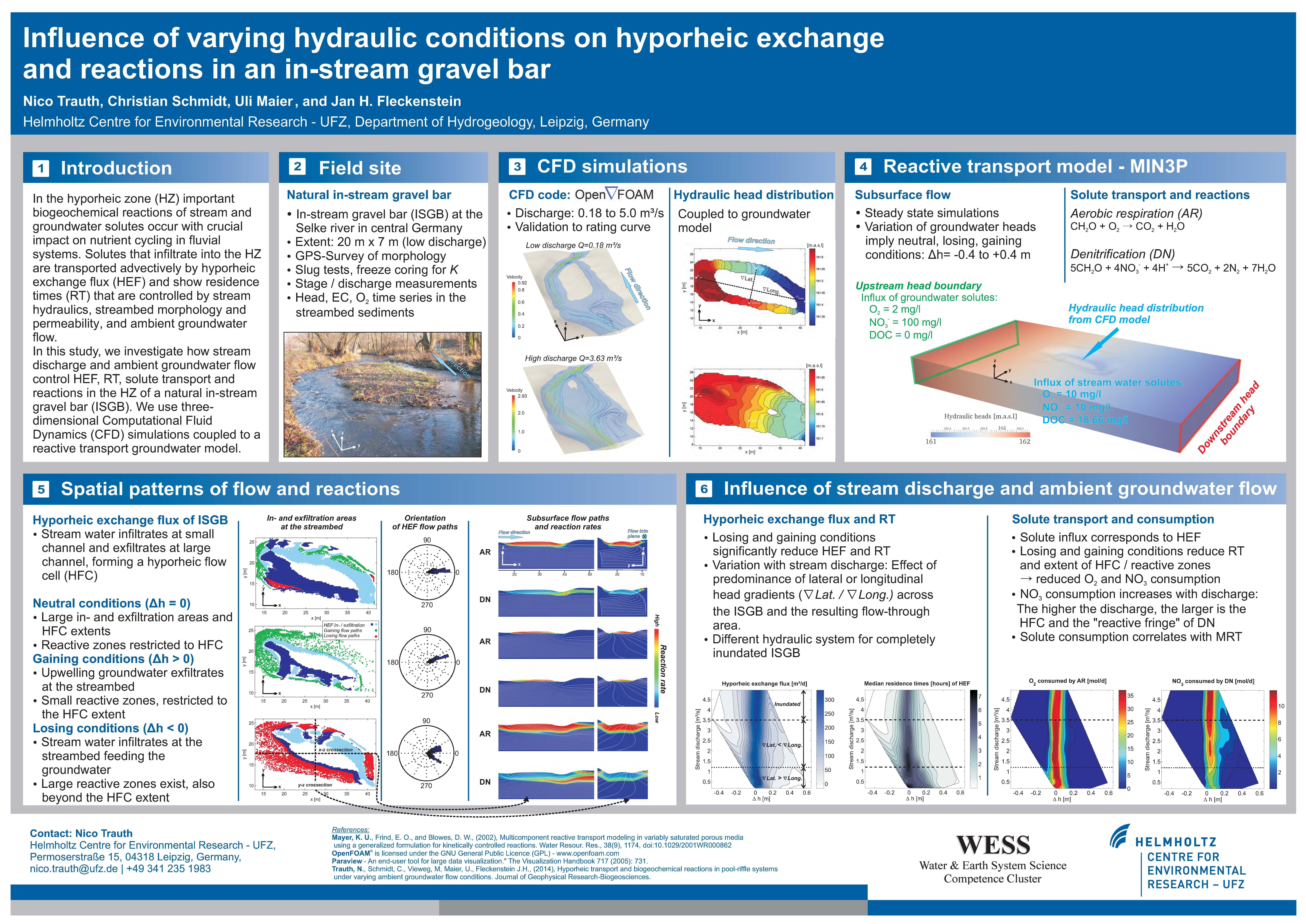

Influence of varying hydraulic conditions on hyporheic exchange and reactions in an in-stream gravel bar

EGU 2014 Nico Trauth, Christian Schmidt, Uli Maier, and Jan H. Fleckenstein
Abstract: Hyporheic exchange transports solutes into the subsurface where they can undergo biogeochemical transformations, affecting fluvial water quality and ecology. A three-dimensional numerical model of a natural in-stream gravel bar (20 m 3 6 m) is presented. Multiple steady state streamflow is simulated with a computational fluid dynamics code that is sequentially coupled to a reactive transport groundwater model via the hydraulic head distribution at the streambed.

Ambient groundwater flow is considered by scenarios of neutral, gaining, and losing conditions. The transformation of oxygen, nitrate, and dissolved organic carbon by aerobic respiration and denitrification in the hyporheic zone are modeled, as is the denitrification of groundwater-borne nitrate when mixed with stream-sourced carbon. In contrast to fully submerged structures, hyporheic exchange flux decreases with increasing stream discharge, due to decreasing hydraulic head gradients across the partially submerged structure. Hyporheic residence time distributions are skewed in the log-space with medians of up to 8 h and shift to symmetric distributions with increasing level of submergence. Solute turnover is mainly controlled by residence times and the extent of the hyporheic exchange flow, which defines the potential reaction area. Although streamflow is the primary driver of hyporheic exchange, its impact on hyporheic exchange flux, residence times, and solute turnover is small, as these quantities exponentially decrease under losing and gaining conditions. Hence, highest reaction potential exists under neutral conditions, when the capacity for denitrification in the partially submerged structure can be orders of magnitude higher than in fully submerged structures.

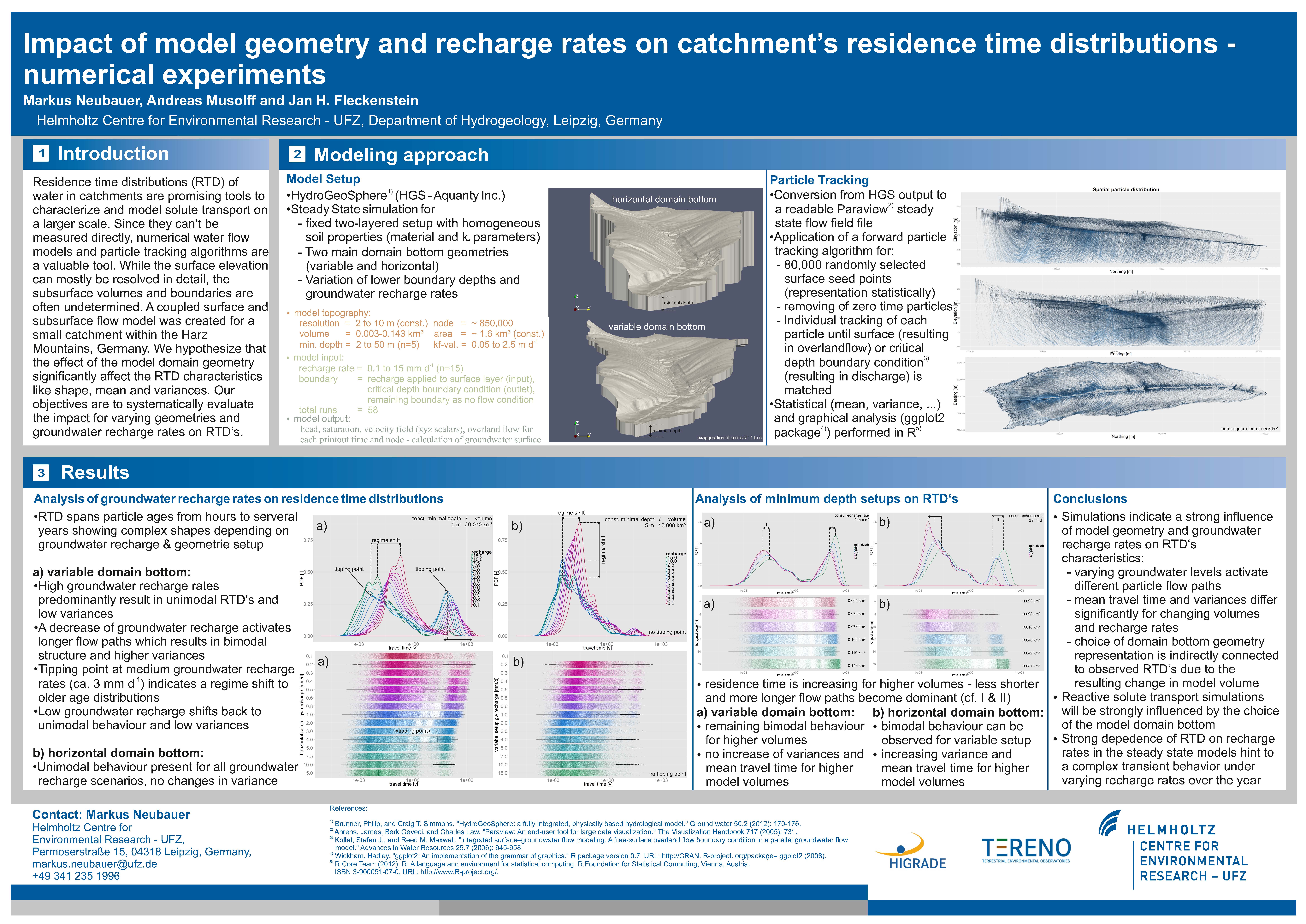

Impact of model geometry and recharge rates in catchment's residence time distributions - numerical experiments

AGU 2013 Markus Neubauer, Andreas Musolff, and Jan H. Fleckenstein
Abstract: Residence time distributions (RTD) of water in catchments are promising tools to characterize and model solute transport on a larger scale. In the last decade, much research has been conducted on the estimation and the application of RTD's. However, there are still some major issues to be addressed to complex derivation, parameterization and transient behavior. Through improved remote sensing data, the surface elevation can mostly be resolved in detail, while subsurface volumes and boundaries remain highly undetermined.

Our objectives are to systematically evaluate the impact of different depths and geometries of the domain bottom and groundwater recharge rates on RTD's. The study site is a small (1.6 km2) headwater catchment located within the Harz Mountains, Germany. For this catchment long time series of climate, discharge and hydrochemistry are available while groundwater flow field and subsurface structure are less known. The site is intensively influenced by agricultural land use and exhibits strong seasonal dynamics of water flow and hydrochemistry due to the snowmelt. The modeling was performed using HydroGeoSphere, a coupled surface and subsurface model, which solves the Richards Equation for variable saturated soils. The Open Source software Paraview and R was chosen as postprocessors to perform and analyze forward particle tracking algorithms under steady state conditions. Ten depth and geometry scenarios of the domain bottom were created (5 horizontal bottom geometries - constant base and 5 variable bottom geometries - parallel to surface topography; both minimum depths ranging from 2 m to 50 m). The model's internal structure was discretized by two homogenous layers (averaged catchment representation) parallel to the input digital elevation model (2x2 m). The geometry scenarios were combined with fifteen steady state simulations for different groundwater recharge rate scenarios (0.1 mm up to 15 mm per day). Model results indicate a strong influence of the chosen model geometry on the RTD's. In cases of horizontal lower boundaries with large model volumes, RTD's are characterized by bimodal behavior, indicating that two distinct main pathways (short and long) dominate within this catchment. The shallower the horizontal bottom geometry the shorter are the particle paths without losing the bimodal behavior. Variable bottom geometry setups with small model volumes result in unimodal RTD's with a significant shorter mean residence time (RT). Higher recharge rates results in a shift to the younger ages. At the same time the variance of the observed particle ages increase. Our result highlights that too shallow model domains truncate longer flow paths and lead to unimodal instead of bimodal RTD's. Although, the subsurface is represented by a simple 2-layer model, highly resolved topography results in complex bimodal RTD's. RT changes in recharge scenarios hint to a significant transient behavior of RTD's under seasonal recharge changes. Further work will concentrate on transient behavior, transient particle tracking, relation to hydrochemistry and the impact of soil heterogeneity.
